- Size: According to machine
- Place of Origin: China
- Brand Name: QDHC
- Model Number: Q69 series
- Weight: 6000.000 kg

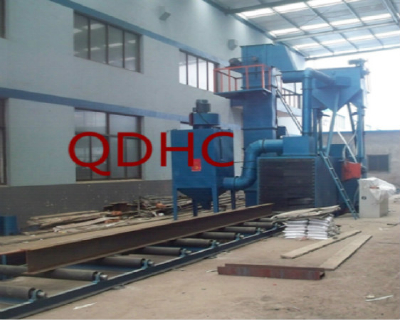

Through type H beam shot blasting machine
Product Description
Q69 series steel shot blasting machine belong to roller-type shot blast cleaning machine, mainly used for buildings, bridges and other industries with large profile steel,profile steel structure such as size pieces of high stress and the elinibation of cleaning the surface rust.
Steel shot blasting machine is designed and manufactured to clean the surface of the profile steel. This shot blasting machine is most used for to removing the rust ,scale and contamination from the steel surface of large scale H-Beam and I-Beam; This shot blast cleaning machine is most suitable for production floor in the construction industries, marine, off-shore oil&gas industries etc.
Technical parameter of steel shot blasting machine
Type | Q6910 | Q6920 | Q6925 | Q6930 | Q6940 | Q6950 |
Workpiece Size | 1200×1000 (Length)(Width) Thickness 6-60(Steel) Steel Height 500
| 1200×2000 | 1200×2500 | 1200×3000 | 1200×4000 | 1200×5000 |
6-60 | 6-25 | 6-60 | 6-60 | 6-60 | ||
400 | 400 | 400 | 400 | 400 | ||
Roller Speed (m/min) | 1-5 (Frequency Control) | 1-5 (Frequency Control) | 1-5 (Frequency Control) | 1-5 (Frequency Control) | 1-5 (Frequency Control) | 1-5 (Frequency Control) |
Length of Inlet Roller (mm) | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 |
Effective Work Width (mm) | 1300 | 2300 | 2800 | 3300 | 4300 | 5300 |
Length of Outlet Roller (mm) | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 |
Power of Dust Blower (kw) | 15 | 18.5 | 22 | 37 | 45 | 55 |
Blasting Quantity(Set) | 4 | 6 | 6 | 8 | 10 | 10 |
Power of Blasting (kw) | 11*4 | 15*6 | 18.5*6 | 22*8 | 22*10 | 30*10 |
Blasting Capacity (kg/min) | 250*4 | 270*6 | 290*6 | 340*8 | 340*10 | 400*10 |
Power of Elevator (kw) | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
Elevating Capacity (t/h) | 60 | 90 | 140 | 180 | 225 | 260 |
Power of Seperator (kw) | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
Seperating Capacity (t/h) | 60 | 90 | 144 | 120 | 170 | 170 |
Application : Typically used in situations requiring the blasting of H beams, Angles and flats, steel plates, steel pipes, square tube, box iron at a high rate. Steel preprocessing machine line mainly used for construction machinery, mining machinery, chemical equipment, pressure vessel, transportation vehicle, ship and bridge and architectural profile industry etc . It used for improve the surface quality and resistance to corrosion.
Equipment: rollers conveyor, blasting chamber, blast wheel, abrasive recycle system, separator, cleaning chamber, dust collector, PLC control system etc.
Design and Sequence of Operations
The Steel are on the roller conveyor and carried into abrasives stream, after blasting by blast wheels, the steel will be sweep and cleaned in chamber, and abrasive reclaimed, dust collected, then steel fabrication sent out to the end conveyor.
There are continuous types.
Blast wheels for outstanding speed without sacrificing coverage.
Perfect for moving Steel fabrication to the blast chamber by conveyor rolls
Wide range of machine types for different production rates and work pieces of different sizes
High production rates, high blast cleaning performance
Economical abrasive consumption. With 3 classes full flow curtain hammer style abrasive reclaim system. The abrasive media is cleaned and recycled, reducing disposal and minimizing abrasive costs .
The number and power of the turbines are chosen according to the requirement production rate.
PLC control system, stable quality and easy to get support from local.
Sweden Standard descaling effect
Switzerland GF DISA technology blast abrator
Switzerland GF DISA technology blast abrator
