- Size: According to machine
- Place of Origin: China
- Brand Name: QDHC
- Model Number: QGW
- Weight: 3000.000 kg

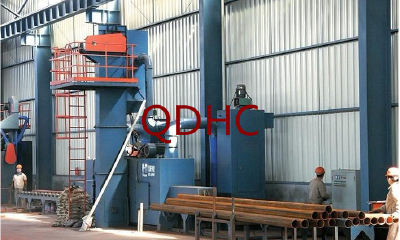

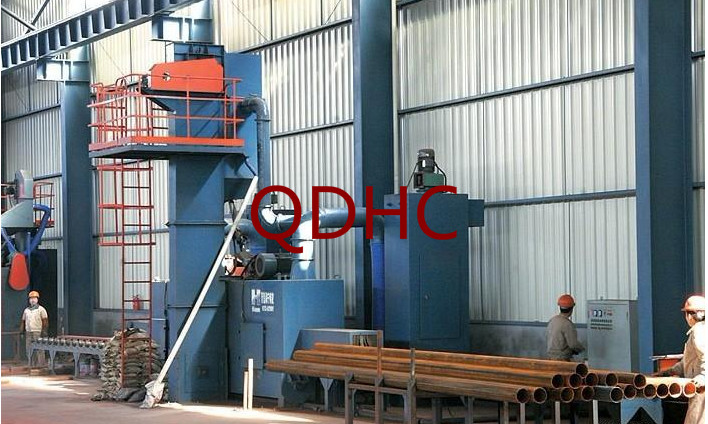

Steel pipe shot peening machine
Steel pipe shot blasting machine
is large, medium and small diameter steel tube, pipes and cylinder shotblast cleaning equipment, using high blasting device of high-speed projectile hit the steel pipe, cast pipe surface, make the fine polished metal color, increase tensile and compressive strength on the surface of the workpiece, make its have certain roughness, achieve anticorrosive, protection tube, prolong the service life of steel pipe.
* Improving anti-fatigue character of mechanical products and steel structure parts.
*Removing stress concentration
*Extending its wear life.
*Optimize surface technology state of work pieces.
*Increasing cleaning efficiency enormously.
*Reducing labour strength of cleaning job.
*Reducing environmental pollution.
Technical parameters
| QGW21H | QGW26H | QGW30 | QGW30H | |||
Size of cleaning piece(mm) | φ800-φ1800 | φ1200-φ2600 | φ1000-φ3000 | φ1200-φ3000 | |||
Pallet load(t) |
|
|
| 10 | |||
Speed of roller(m/min)
| 0.5-6 | 0.5-6 | 0.5-6 |
| |||
Blast wheel | Abrasive flow rate( kg/min) | 2×280 | 2×360 | 2×360 | 6×250 | ||
| Power (KW) | 2×22 | 2×30 | 2×30 | 6×18.5 | |||
Dust collector | Type | HR-16 | HR-16 | HR-24 | HR-32 | ||
Air volume(m3/h) | 12000 | 12000 | 18000 | 24000 | |||
Power(not including dust)(KW)
| 90.4 | 104.6 | 106.6 | 135.5 | |||
Outline dimensionm(mm)
| 35200×5250×5200 | 35200×5860×5900 | 35200×6240×6300 | 18750×6645×11300 | |||
Our Services
1.Supplier promise the name, model, specification and quantity comply with technical protcol, assuring the machine is new equipment with qualified material
manufactured through perfect technology. There are no defects in design,
material and technologies, which is suitable for propose of demander, and
meets the standard of national industry. The quality is stable and reliable.
2.Equipment warranty and After-sale Assurance Engineers available to
service machinery overseas ( except force majeure, inappropriate operation and the quick-wear parts wears).
3.The equipment will pass the installment and test before delivery,
after the quality is qualified. we will disassembly the equipment, coating and deliver.
If you are interested in the shot blasting machine,
please let me know.
