- Size: Customized
- Place of Origin: China
- Brand Name: QDHC
- Model Number: Q3110/Q3113
- Weight: 4000.000 kg

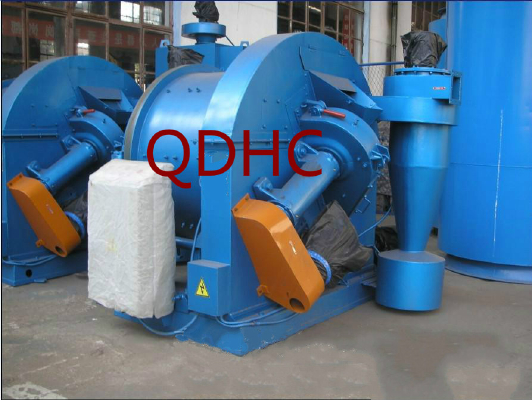

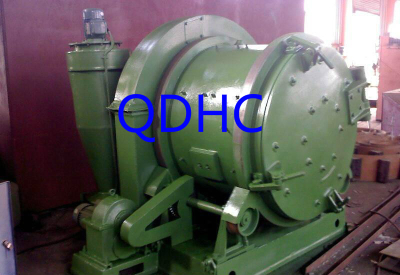

Rolling drum shot blasting equipment
Drum shot blasting machine designed for Shot Blast Cleaning of small or medium size iron, steel, alloy and non-ferrous castings, forgings, heat treated parts, pressings and Fabrications at the lowest possible cost.
Capacity : 100/150 kgs load 1.5/3 cft effective volume. The cleaning rate depends on nature of job, degree of surface preparation required and type of abrasive used.
Blast Wheel : The most effective abrasive throwing unit fitted capable of projecting optimum quantity of abrasive per horse power.
Low Maintainence : Rugged and sturdy overall construction of machine ensure minimum operational and maintenance cost, where vulnerable components are lined with wear resistant
Technical Parameter:
Technical parameters of Q31 series shot blasting machine | ||||||
Serial number | Item | Type | Q311B1 | Q311B11 | Q3110B1 | Q3110B11 |
1 | Diameter of rolling drum | Mm | 1300 | 1300 | 1000 | 1000 |
2 | Loading capacty | Kg | 600 | 600 | 300 | 300 |
3 | Productivity | Kg/h | 250-3500 | 2500-3500 | 600-1500 | 600-1500 |
4 | Power(exulding dedusting) | Kw | 14.5 | 16.3 | 9.7 | 11.9 |
5 | Maximun weight of workpiece | Kg | 30 | 30 | 15 | 15 |
6 | Rotational speed of rolling drum | r/min | 2.5 | 2.5 | 3 | 3 |
7 | Abrasive flow rate | Kg/min | 160 | 160 | 120 | 120 |
8 | Ventilation capacity | M3/h | 2000 | 2800 | 800 | 2000 |
9 | Dedusting efficiency | % | 85 | 99 | 85 | 99 |
10 | Outline dimensions | Mm | 2550*2341*2250 | 4362*2341*2250 | 2078*2458*1861 | 3870*2458*3370 |
We are QINGDAO HUACHUAN MACHINERY CO., LTD. Located in the machinery manufacture base of QINGDAO Seaport (top 10 of world), develop for over 30 years of experience of R&D and sales, pass of ISO 9000 managment system & CE quality certification. As one of the leading machinery manufacturers such as: plate vulcanizing machine, Shot/Sand blasting machine(polish the steel surface rust, strength the steel qulity suit for steel plate, road surface, H beam, outer/inside pipe, oil pipeline casting etc);
Our company has rich technical force ,advanced equipment ability ,complete quality testing means,and we have steady , long-term fixed cooperation relationship successively with who make trade in the whole country , casting , gear wheel , shipbuilding , car ,spring , tool , steel construction ,container-making . And our company has been favorably noticed unanimously by the masses of cooperation users and trusted.We , while developing ,the products are updated ,F
rom designing,feed ,manufacturing ,quality testing to sales ,have realized network management all in return.The main products are as follows : Q31 , Q32 , Q35 ,Q36,Q37,LQ series shot blasting machine.
1.Pre-sale services:
Provide the consultation of the equipment. According to the clients’ special requirement, offering the reasonable plan helping to select the equipment. Welcome to visit our factory.
2.Services during the sales:
Inspect the machine before leaving the factory. Oversea install and debug the equipment. Train the first-line operator.
3.After sale services:
Provide technical exchanging and t imely problem solving support.
We promiss:
Same price ,with best quality,
Same quality,with best price.
If you are interested in the drum shot blasting machine, please let me know.
