Qingdao turntable type shot blast machine

Qingdao turntable type shot blast machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-04-02
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  According to machine
  • Place of Origin:  China
  • Brand Name:  QDHC
  • Model Number:  Q35 series
  • Weight: 2000.000 kg

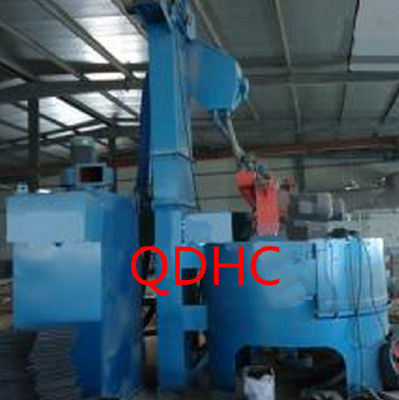

       Qingdao turntable type shot blast machine


Product Description



Turntable shot blast machine is suitable for surface strengthening of compressed work piece, the work piece is in the turntable and is blasted from vertical direction. Q35 shot blast machine is suitable for surface rust removal and strengthening of engine connecting bar, gear, shell cover wall, clutch friction part.
Choose our turntable shot blast machine, for it has advantages of high productivity, good sealing effect, compact composition and made using high technology. You can use this machine in casting, car, war factory, any foundry place in your needs.

Model and parameters

Item Type

Q3512

QF3512

Q3525

Size of blast chamber (mm)

φ1350*560

φ1350*860

φ2654*560

Max size of workpiece (mm)

600*250*250

600*250*500

600*500*250

Loading capacity of table(kg)

400

400

1000

Diameter of table (mm)

φ1200

φ1200

φ2500

Shot blasting rate(kg/min)

200

2*120

2*250

Power of blast wheel (KW*pcs)

11

7.5*2

15*2

Lifting capacity of hoister (t/h)

15

15

30

Separated capacity of separator (t/h)

15

15

30





Details images






Company Information

We are  QINGDAO HUACHUAN MACHINERY CO., LTD.  Located in the machinery manufacture base of QINGDAO Seaport (top 10 of world), develop for over 30 years of experience of R&D and sales, pass of ISO 9000 managment system & CE quality certification. As one of the leading machinery manufacturers such as: plate vulcanizing machine, Shot/Sand blasting machine(polish the steel surface rust, strength the steel qulity suit for steel plate, road surface, H beam, outer/inside pipe, oil pipeline casting etc);



Main Products List of HUACHUAN Machinery

1

Stone Shot Blasting Machine;

14

Jolt Squeeze Molding Machine;

2

Movable Shot Blasting Machine;

15

Resin Sand Processing Production Line;

3

Q32 Series Tumble Belt Shot Blasting Machine;

16

Clay Sand Processing Production Line;

4

Q37 Series Hook Type Shot Blasting Machine;

17

S14 Series Rotator Type Sand Mixer;

5

QH69 Series Steel Structure / Steel Plate Shot Blasting Machine;

18

S25 Double-arm Sand Mixer;



6

Q35 Series Turntable Shot Blasting Machine;

19

S11 Series Wheel Rolling Type Sand Mixer;

7

QH69 Series Through Type Shot Blasting Machine;

20

L12 Series Inertial Vibrating Shakeout Machine;

8

QGW/QGN Steel Pipe Exterior & Interior Shot Blasting Machine;

21



9

Q36 / Q76 Series Rotary Table Shot Blasting Machine;

22



10

Q38/48/58 Series Overhead Rail Shot Blasting Machine;

23



11

Mesh Belt Type Shot Blasting Machine

24



12

Direct-Driven Blast wheel;

25



13

Belt-Wheel Blast Wheel;

26









Ou
















Our  Services



1.Pre-sale services:



Provide the consultation of the equipment.  According to the clients’ special requirement, offering the reasonable plan helping to select the equipment. Welcome to visit our factory.



2.Services during the sales:



Inspect the machine before leaving the factory. Oversea install and debug the equipment.  Train the first-line operator.



3.After sale services:



Provide technical exchanging and timely problem solving support.



We promiss:



                Same price ,with best quality,

      Same quality,with best price.





If you are interested in our casting machinery , p lease let me know.

          Tel: 86-18266640163
       Skype: huachuanjixie
       WhatsApp: +86-18266640163
       Email: 18765830218@163.com
