- Size: Customized
- Place of Origin: China
- Brand Name: QDHC
- Model Number: Q37 series
- Weight: 5000.000 kg
- :
Q37 series double hook shot blasting machine
Introduction
Hook shot blasting machine is divided into single hook and double hook, hook type shot blasting machine consists of two alternating hook workpiece loading into the blast cleaning room. Blasting using 0.2 to 0.8 the surface of the workpiece thrown projectile, such that the surface of the workpiece reaches a certain roughness so that the workpiece becomes beautiful, the compressive stress of the workpiece or to change the increased life expectancy. This model is widely used in small and medium casting foundry, construction, chemical, electrical, machine tools and other industries, surface cleaning or strengthening treatment forgings.
Use
This model is suitable for clean-up and should not collide slender, thin-walled parts. Hook shot blasting machine shot blasting machine as a standard model, which is working cylinder diameters from 900 1300 mm, height from 1300 to2200 mm. Standard model with a 2-7 polishing head, the maximum load capacity 10,000 kg, the production efficiency of this shot blasting machine is quite high, flexibility span is quite large and is ideal for clean-enhanced devices, and easy to operate, just to be processed workpiece is loaded on the machine, press the start button, after a very short period of time (usually 5-7 minutes), to complete the entire cleaning process, clear out all the dust and residual pellets, mainly applicable to a variety of surface treatment of large castings, forgings, weldments, heat treatment, including fragile and irregularly shaped workpieces.
Technical parameter
| Item/type | Q376F | Q378 | Q3710 | QD3710 | Q3720 | Q3730 | Q3750 | Q3780 |
Size of cleaning chamber(mm) | 600*1100 | 800*1500 | 900*1600 | 900*1600 | 1400*2300 | 1600*2200 | 1800*2500 | 2000*3000 |
Carrying weight of single hook(kg) | 600 | 1000 | 1000 | 1000 | 2000 | 3000 | 5000 | 8000 |
Abrasive flow rate(kg/min) | 2*120 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 4*250 |
Lifting amount of elevating conveyor(t/h) | 15 | 22 | 30 | 30 | 45 | 45 | 60 | 60 |
Separating amount of separator(t/h) | 15 | 22 | 30 | 30 | 45 | 45 | 60 | 60 |
Ventilation(m 3 /h) | 5000 | 8000 | 9000 | 9000 | 15000 | 15000 | 18000 | 20000 |
Power(excluding dedusting)kw | 19 | 32.5 | 36.55 | 39.65 | 61.27 | 64.4 | 78.4 | 81.5 |
Outline dimensions(mm)
| 4429*2850* 3443 | 4325*2660* 5009 | 5047*3850* 5156 | 5844*2724* 5716 | 6110*3599* 7842 | 7085*4650* 8652 | 7062*5460* 8652 | 8050*6400* 8526 |

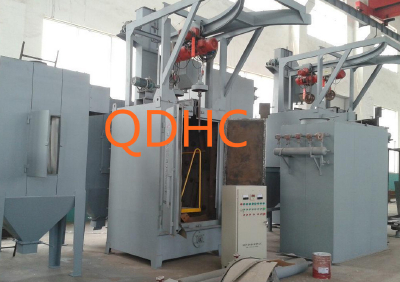

Product image
We can design product according to your demand. The products have stabile performance , good quality and reliable service. We allow a proper discount according to the quantity you order.If you have any question, pls dont feel any hesitate to ask me, i will try best to meet your demand,It's make our company great honour .
We promise:
Same price ,with best quality,
Same quality,with best price.
If you are interested in this machine, please let me know.
Email; 18765830218@163.com
Skype; huachuanjixie
Whatsapp; +8618266640163
