- Size: According to machine
- Place of Origin: China
- Brand Name: QDHC
- Model Number: Q32
- Weight: 1000.000 kg

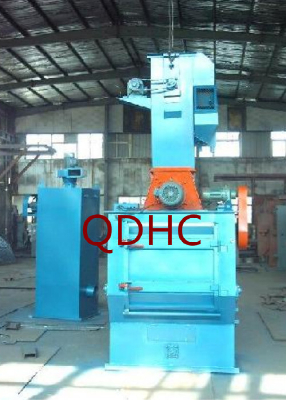

Q32 series rubber belt sand blasting machine
Specifications of rubber apron shot blasting machine
This machine is suitable for various large and medium-sized batch production of workpiece surface derusting or peen-forming strengthening, clean up the work-piece must be not afraid of the collision of the single is is 150 kg of the casting and heat treatment, the machine can not only a single use, and wiring use. Belong to casting machinery.
Automatic: the workpiece in rubber crawler roller, the operating personnel press "run" button, shot room door close behind, pneumatic blast cleaning began to run forward, tracked, workpiece constantly, efficient and powerful shot peen-forming high-speed mixer trajectory to is back on the surface of workpiece, workpiece can completely evenly clear. Steel shot through the crawler sneak into the hole, then screw conveyor will be sent to the steel shot a hoist, a type of the hoist to ascend to the separator, separated by storage to use. Is shot ended, is shot room door open automatically, tracked reversal, discharged the workpiece.
Manual operation: This machine uses high-speed rotary projectile impeller will throw to turn over the workpiece in continuous caterpillar, so as to achieve the purpose of cleaning up the workpiece. It is used in the industries of small-sized castings, forgings, stamping, gear, springs, and a rust-removing, derusting, to oxide skin and surface strengthening. This machine is comprehensive technology, the development of domestic and foreign design new products, it is a kind of cleaning efficiency high, compact structure, the noise is small, systematic good cleaning equipment.
Product features
1. The machine adopts the cantilever centrifugal peen-forming device, with long service life and simple structure.
2. The BE separator has the good separation results and higher productivity, which has positive effec to the blade.
3. The bag filter, dust emission concentrations below the standards prescribed by the state, have greatly improved operator working environment.
4. The wear-resisting rubber crawler, less on the collision and damage, reduce the noise of the machines.
Applicable scope
Die casting, precision casting, precision forging of cleaning, light ornaments. Remove heat-treated pieces, castings, forgings surface oxide skin. The strengthening of the spring. Fasteners derusting and former processing.
1. Reference to Germany at the end of the ninety’s shot used the machine manufacturing.
2. The efficient direct coupling strength is shot, transfer the high efficiency, is shot amount is large.
3. Efficient wind separator, pill isolating rate of more than 99% of sand.
4. Projectile enclothe even, without peen-forming blind angle.
5. Wear parts of long service life, change quickly.
6. Low noise operation.
7. Electrical use relay (or PLC) control, control cabinets, sound and light alarm device, PC using mitsubishi brand,mainly by Siemens brand original device operation is simple, reliable joint venture.
Technical parameters of rubber apron shot blasting machine
Item | unit | Q326 | Q3210 | QR3210 |
Productivity | kg/h | 600-200 | 2500-3500 | 3000-5000 |
feeding amount | kg | 200 | 370 | 600 |
max weight of single piece | kg | 15 | 15 | 30 |
diameter of end dish | mm | 150 | 1000 | 1000 |
effective volume | m | 0.33 | 1.05 | 1.05 |
abrasive flow rate | kg/min | 200 | 250 | 250 |
ventilation capacity | m³/h | 2500 | 3500 | 4000 |
power consumption | kw | 13.47 | 25.05 | 31.65 |
out line dimetion | mm | 3200*1520*3715 | 4290*1900*4500 | 5850*1950*4600 |
Advantages of the shot blasting machine
1.Factory direct sales with competitive price
2.Ten years production experience
3.Professional design team to serve you.
4.All our productions are made by best material.
5.CE/ISO certification assure you our good quality .
Welcome to contact us!
